Welding Technique Secrets: How Expert Fabricators Ensure Structural Integrity

In the realm of heavy industry, from towering skyscrapers to intricate pipeline networks, the integrity of welded structures is paramount. A single flaw can lead to catastrophic failure, resulting in immense financial losses, environmental damage, and, most tragically, loss of life.

As project directors and senior engineers grapple with increasingly complex designs, stringent regulations, and demanding performance requirements, the need for mastery in welding techniques has never been greater.

This expert guide offers a strategic blueprint for achieving unparalleled weld quality and long-term structural reliability. Prepare to uncover actionable insights that will transform your approach to welding, elevating your projects to new heights of safety and performance.

The Evolving Industrial Landscape

The industrial landscape is undergoing a period of rapid transformation, driven by several key macro-trends that directly impact welding practices and the structural integrity of products.

Firstly, the rise of advanced materials, such as high-strength low-alloy (HSLA) steels, duplex stainless steels, and aluminum alloys, presents both opportunities and challenges. These materials offer superior strength-to-weight ratios and corrosion resistance but often require specialized welding techniques and parameters to avoid defects.

Secondly, the increasing demand for sustainable infrastructure is driving the adoption of eco-friendly welding processes, such as laser beam welding (LBW) and friction stir welding (FSW), which minimize energy consumption and emissions. These techniques also require a higher level of precision and control.

Thirdly, the integration of digital technologies, such as real-time monitoring systems and robotic welding, is revolutionizing welding quality control. These technologies enable the continuous assessment of welding parameters, the early detection of defects, and the automated correction of welding processes.

Finally, stricter regulatory standards and quality assurance requirements are driving the industry towards more rigorous inspection and testing protocols, including advanced non-destructive testing (NDT) methods such as phased array ultrasonic testing (PAUT) and computed tomography (CT).

Strategic Imperatives for Structural Integrity

To navigate this evolving landscape and ensure long-term structural integrity, industrial leaders must prioritize the following strategic imperatives:

Investing in Certified Welder Training and Qualification

The cornerstone of any successful welding program is a highly skilled and qualified workforce. Companies must invest in comprehensive training programs that cover not only the fundamentals of welding but also advanced techniques, material science, and quality control procedures.

Certified welder training methods should incorporate hands-on practice, theoretical knowledge, and continuous assessment to ensure that welders are proficient in their respective welding processes and materials.

Furthermore, companies should establish rigorous welder qualification programs that comply with industry standards such as AWS D1.1, ASME Section IX, and ISO 9606. These programs should involve regular testing and recertification to maintain welder competency and ensure that they are up-to-date with the latest welding techniques and best practices.

Long-term benefits include reduced defect rates, improved weld quality, increased productivity, and enhanced safety performance.

Implementing Robust Welding Quality Control Methods

Welding quality control should not be limited to post-weld inspection; it should be an integral part of the entire welding process, encompassing design, fabrication, and installation. A comprehensive welding quality control program should include:

Thorough review of welding joint design to ensure proper accessibility, fit-up, and stress distribution.
Detailed welding procedure specifications (WPS) that specify welding parameters, materials, and techniques for each joint.
Pre-weld inspection to verify material cleanliness, joint preparation, and equipment calibration.
In-process monitoring to track welding parameters such as voltage, current, and travel speed, and to detect any deviations from the WPS.
Post-weld inspection using both visual and non-destructive testing methods to identify any defects such as cracks, porosity, or lack of fusion.
Conduct a root cause analysis of any defects to identify the underlying causes and implement corrective actions to prevent recurrence.
Data analysis and statistical process control to identify trends and improve welding processes.

By implementing a robust welding quality control program, companies can minimize the risk of defects, improve weld reliability, and reduce overall project costs.

Optimizing Welding Joint Design for Performance

Welding joint design plays a critical role in determining the strength, durability, and performance of welded structures. Proper joint design should consider factors such as:

Load type and magnitude: The joint should be designed to withstand the expected loads without exceeding the allowable stress limits.
Material properties: The joint should be compatible with the materials being joined, taking into account their weldability, strength, and corrosion resistance.
Environmental conditions: The joint should be designed to withstand the expected environmental conditions, such as temperature, humidity, and corrosive agents.
Fabrication constraints: The joint should be designed to facilitate easy fabrication and inspection, considering factors such as accessibility, weld position, and equipment limitations.
Stress concentration: The joint should be designed to minimize stress concentration, which can lead to fatigue failure.

Advanced joint designs, such as full-penetration welds, partial-penetration welds with back-gouging, and fillet welds with proper reinforcement, can significantly enhance the performance of welded structures.

Selecting Welding Equipment for Structural Work

The selection of appropriate welding equipment is crucial for achieving high-quality welds and ensuring structural integrity. Factors to consider when selecting welding equipment include:

Welding processes: Various welding processes, including SMAW, GMAW, FCAW, and GTAW, are suitable for different materials, thicknesses, and applications.
Material type: The welding equipment should be compatible with the materials being joined, taking into account their weldability and metallurgical properties.
Welding position: The welding equipment should be suitable for the welding position, such as flat, horizontal, vertical, or overhead.
Duty cycle: The welding equipment should have a sufficient duty cycle to handle the required welding time without overheating.
Power source: The welding equipment should have a stable and reliable power source to ensure consistent welding parameters.
Control features: The welding equipment should have advanced control features, such as pulsed welding, synergic control, and automatic parameter adjustment, to optimize welding performance.

Investing in high-quality welding equipment from reputable manufacturers can significantly improve weld quality, reduce downtime, and enhance welder productivity.

Implementing Welding Heat Treatment Processes

Welding heat treatment processes are often necessary to improve the mechanical properties and reduce residual stresses in welded structures. Standard heat treatment processes include:

Preheating: Heating the base metal before welding to reduce the cooling rate and minimize the risk of hydrogen cracking.
Interpass temperature control: Maintaining the temperature of the weld joint between welding passes to ensure consistent weld quality.
Post-weld heat treatment (PWHT): Heating the welded structure after welding to reduce residual stresses, improve ductility, and enhance resistance to stress corrosion cracking.

The specific heat treatment process and parameters should be carefully selected based on the material type, weld joint design, and service requirements. Proper heat treatment can significantly improve the long-term reliability and performance of welded structures.

Advanced Methodologies & Innovations

The welding industry is constantly evolving, with new methodologies and innovations emerging to address the challenges of modern structural fabrication. Some of the most promising advancements include:

Robotic Welding for Structures

Robotic welding systems offer several advantages over manual welding, including increased productivity, improved weld quality, and enhanced safety. Robotic welding is particularly well-suited for repetitive welding tasks, complex geometries, and hazardous environments. Advanced robotic welding systems incorporate sensors, vision systems, and adaptive control algorithms to optimize welding parameters and ensure consistent weld quality.

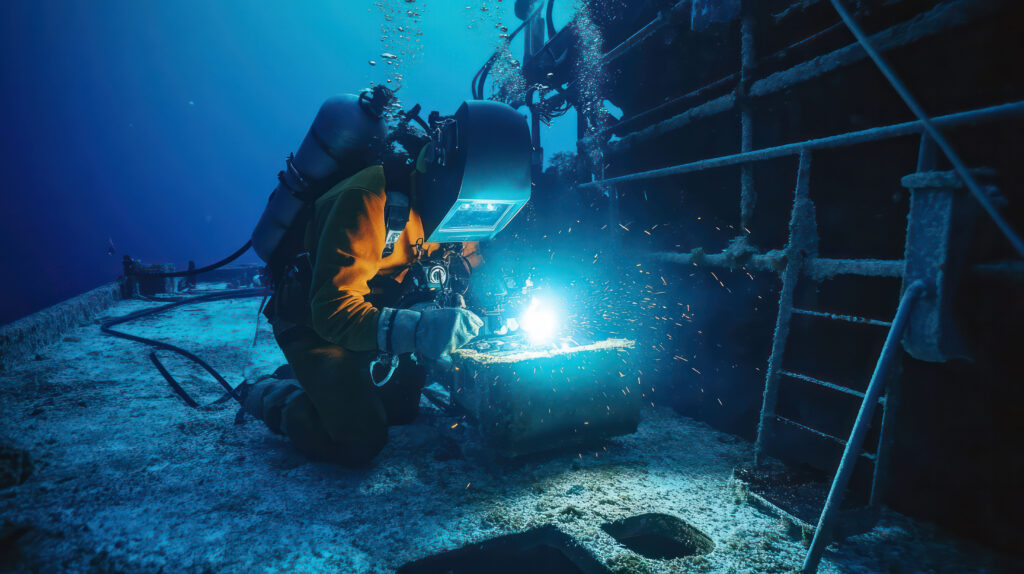

Underwater Welding Techniques

Underwater welding is a specialized technique used for repairing and maintaining offshore structures, pipelines, and other submerged assets. Underwater welding can be performed using either wet or dry welding methods. Wet welding involves welding directly in the water, while dry welding involves creating a dry environment around the weld joint using a habitat or chamber. Underwater welding requires highly skilled and experienced welders who are trained in both welding and diving techniques.

Laser Beam Welding (LBW)

Laser beam welding is a high-precision welding process that uses a focused laser beam to melt and fuse the base metals. LBW offers several advantages over traditional welding processes, including high welding speed, narrow heat-affected zone, and minimal distortion. LBW is suitable for welding a wide range of materials, including dissimilar metals and thin sections.

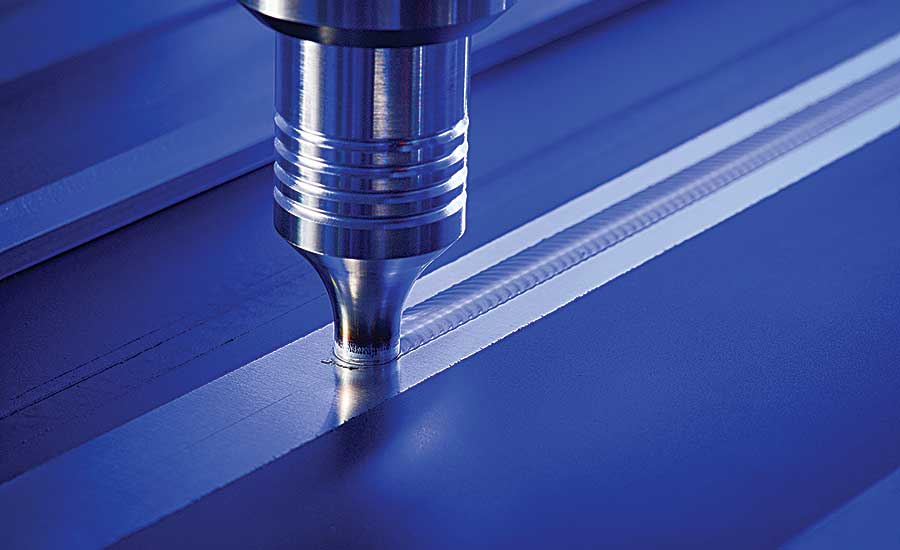

Friction Stir Welding (FSW)

Friction stir welding is a solid-state welding process that uses a rotating tool to generate frictional heat and plastic deformation at the joint interface. FSW offers several advantages over fusion welding processes, including no melting, no filler metal, and low distortion. FSW is particularly well-suited for welding aluminum alloys and other materials that are difficult to weld using traditional methods.

Risk Mitigation & Resilience Strategies

Welding projects are inherently risky, and it is essential to implement robust risk mitigation and resilience strategies to minimize the potential for failures. Some key strategies include:

Comprehensive Risk Assessment: Conduct a thorough risk assessment to identify potential hazards and vulnerabilities associated with the welding process. This should include consideration of factors such as material properties, welding parameters, environmental conditions, and human factors.
Redundancy and Backup Systems: Incorporate redundancy and backup systems into the design of critical welded structures to ensure that they can withstand unexpected loads or failures. This may involve using multiple load paths, reinforcing critical joints, or providing alternative support systems to ensure stability.
Regular Inspection and Maintenance: Implement a regular inspection and maintenance program to detect and address any signs of deterioration or damage to welded structures. This should include visual inspection, non-destructive testing, and periodic load testing.
Emergency Response Planning: Develop an emergency response plan to address potential welding failures and minimize the impact on personnel, equipment, and the environment. This should include procedures for evacuation, containment, and remediation.
Knowledge Management and Training: Capture and disseminate welding knowledge and best practices throughout the organization to ensure that all personnel are aware of the risks and are trained to mitigate them. This should include regular training sessions, workshops, and knowledge-sharing platforms.

Future Outlook & Expert Predictions

The future of welding is bright, with several exciting trends and developments on the horizon.

One key trend is the increasing adoption of artificial intelligence (AI) and machine learning (ML) in welding processes. AI and ML can be used to optimize welding parameters, predict weld quality, and automate defect detection. This will lead to improved weld quality, reduced costs, and increased productivity.

Another trend is the development of new welding processes and materials that are more sustainable and environmentally friendly. This includes the use of bio-based welding consumables, low-emission welding processes, and the utilization of recyclable materials.

Ultimately, the growing demand for customized and complex welded structures is driving the development of advanced welding techniques, including additive manufacturing (3D printing) and hybrid welding processes.

To prepare for these future changes and maintain a competitive edge, businesses should invest in research and development, embrace new technologies, and cultivate a culture of innovation.

Conclusion

In conclusion, ensuring structural integrity through advanced welding techniques is not merely a matter of following procedures; it requires a strategic, comprehensive approach that encompasses welder training, quality control, joint design, equipment selection, heat treatment, risk mitigation, and continuous innovation.

By prioritizing these strategic imperatives, industrial leaders can minimize the risk of welding failures, improve weld reliability, and enhance the long-term performance of their structures. SRJ Piping India stands as a partner in complex industrial solutions, with the ability to elevate welding from a trade to an art form.
